Medium green

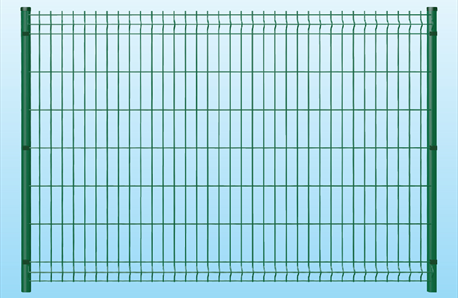

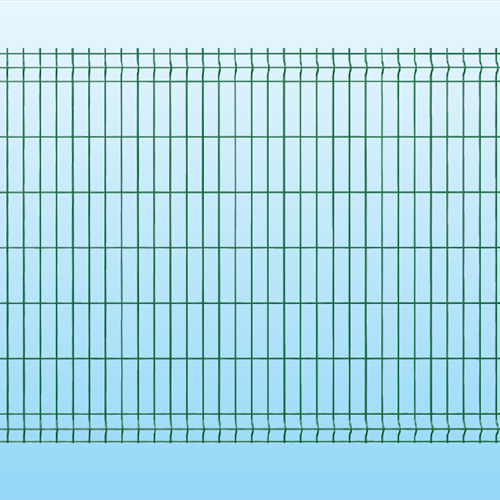

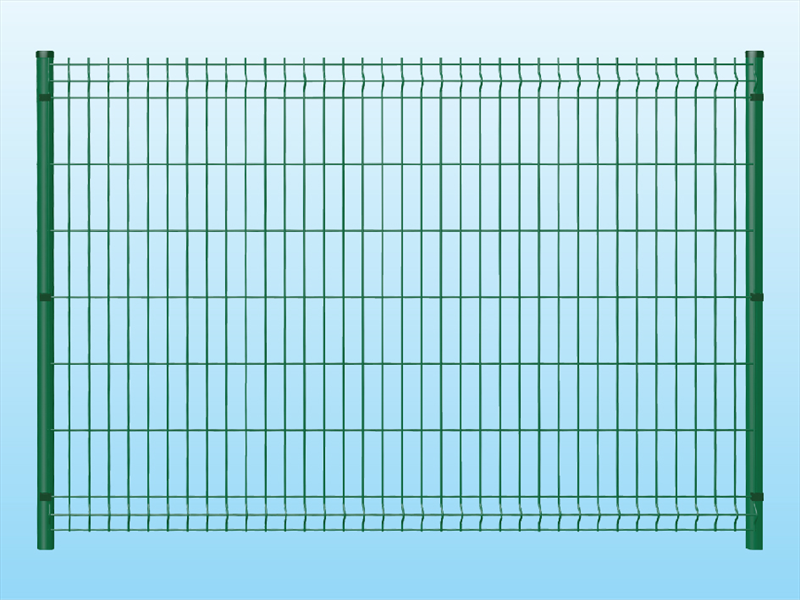

Medium Green is fence in electro welded panels made of dip galvanized + green PVC coated wire.

Wire external diameter Ø 5.00 mm, mesh 50x200 H mm (interaxis) and horizontal reinforcing ribs.

Aviable in width 2 or 2,5 mètres, height up to 1,92 mètres, packaging in pallets of 50 pieces.

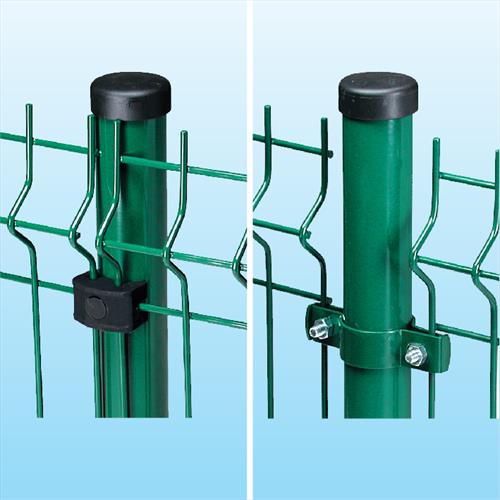

Medium Green is sold with Tubolario Posts Ø 48 mm (with polypropylene clip or steel collar), Square Posts 50x50 mm (with polypropylene clip or steel collar) and Caesar Posts (without accessories).

FINISHING AND COLORS AVAILABLE:

PFZ: hot dip galvanized + zinc phosphate + polyester plastic coated (Color Green)

Request information

Medium green

H mm	Ø Wire mm (external)	Mesh mm	Ribs	Width 2000 mm	Width 2500 mm
620	5,0	50x200	2	*
820	5,0	50x200	2	*
1020	5,0	50x200	2	*	*
1220	5,0	50x200	2	*	*
1420	5,0	50x200	2	*	*
1720	5,0	50x200	3	*	*
1920	5,0	50x200	3	*	*

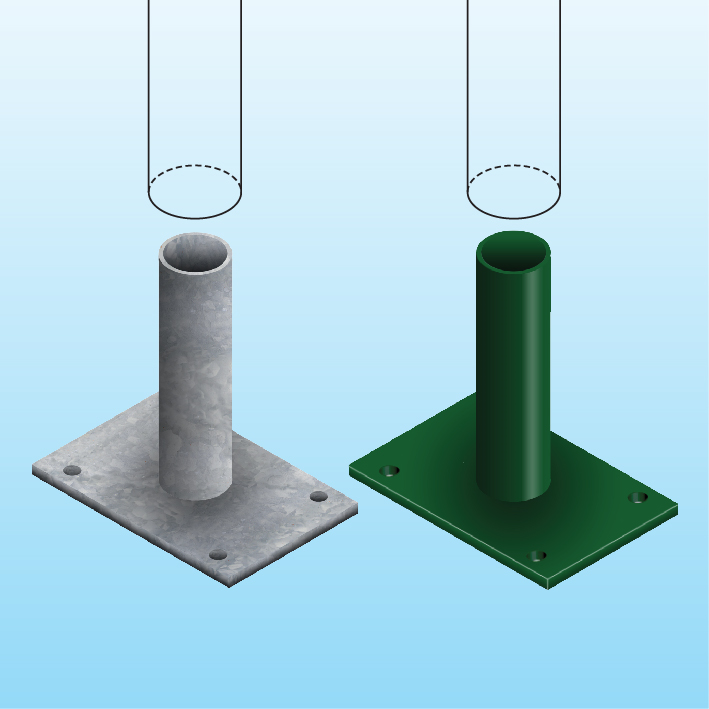

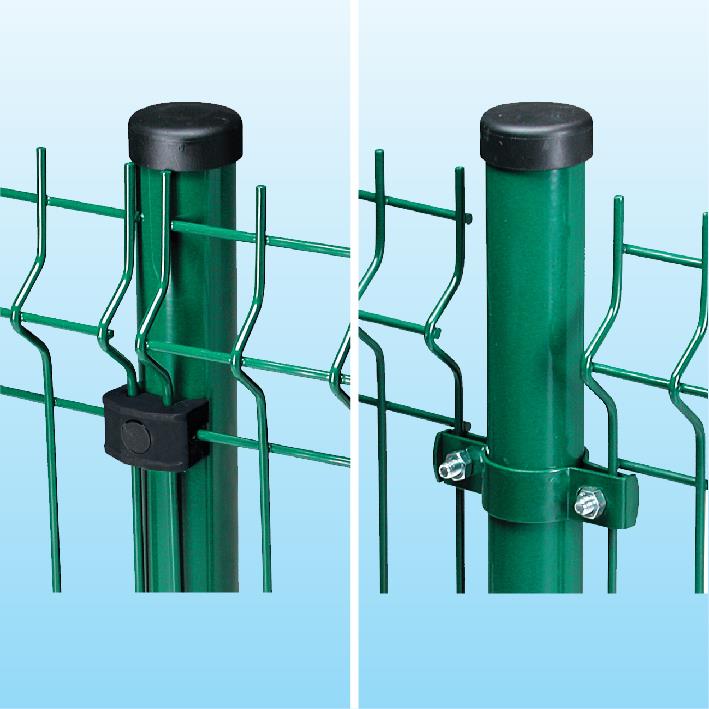

Tubolario post Ø 48 mm

H mm	Panel H mm installed with socket	Panel H mm installed in concrete	Pallet of	Accessories needeed
1100	1020	620 - 820	120	3
1300	1220	1020	120	3
1500	1420	1220	120	3
1750	1720	1420	120	3
2000	1920	1720	120	4
2300	-	1920	120	4
2600	-	1920	120	4

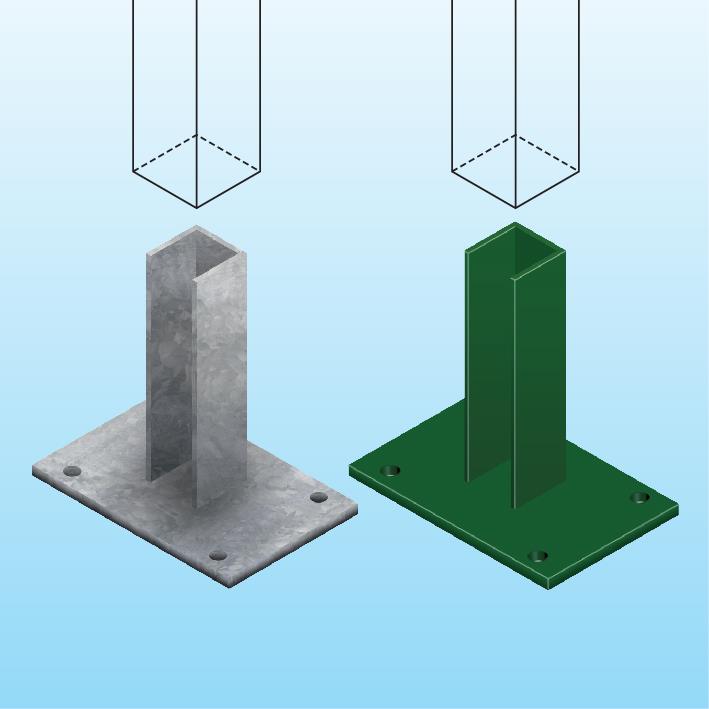

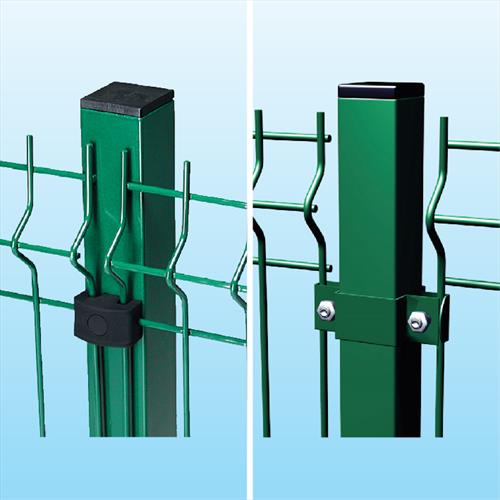

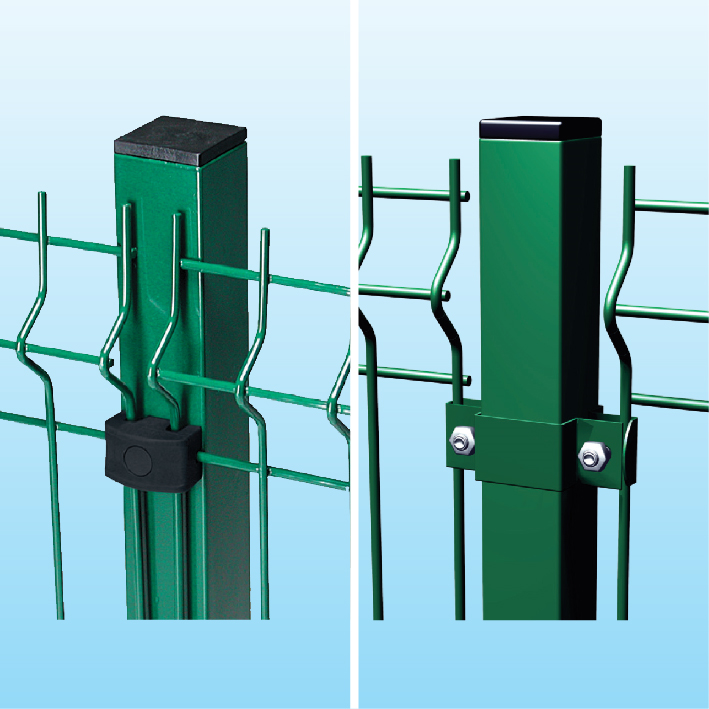

Square post 50x50 mm

H mm	Panel H mm installed with socket	Panel H mm installed in concrete	Pallet of	Accessories needeed
1100	1020	620 - 820	120	3
1300	1220	1020	120	3
1500	1420	1220	120	3
1800	1720	1420	120	3
2000	1920	1720	120	4
2300	-	1920	120	4

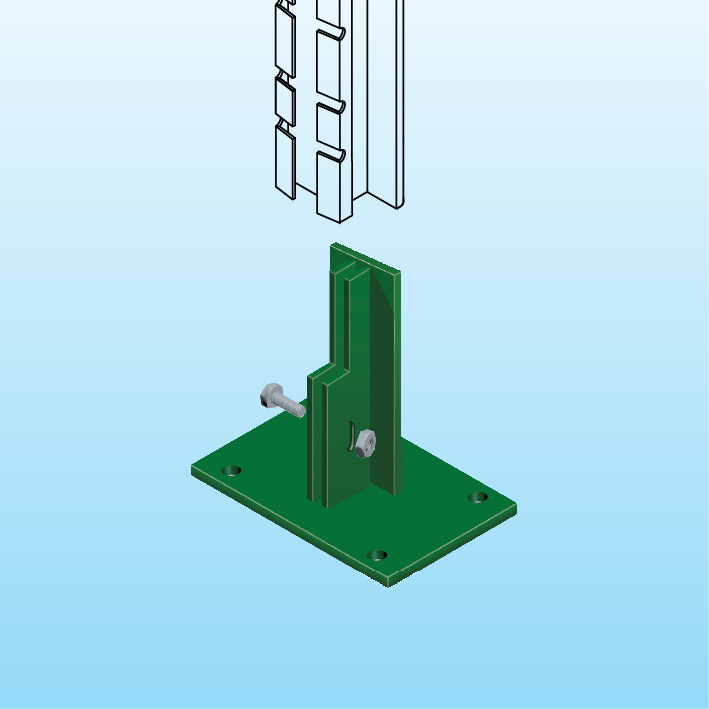

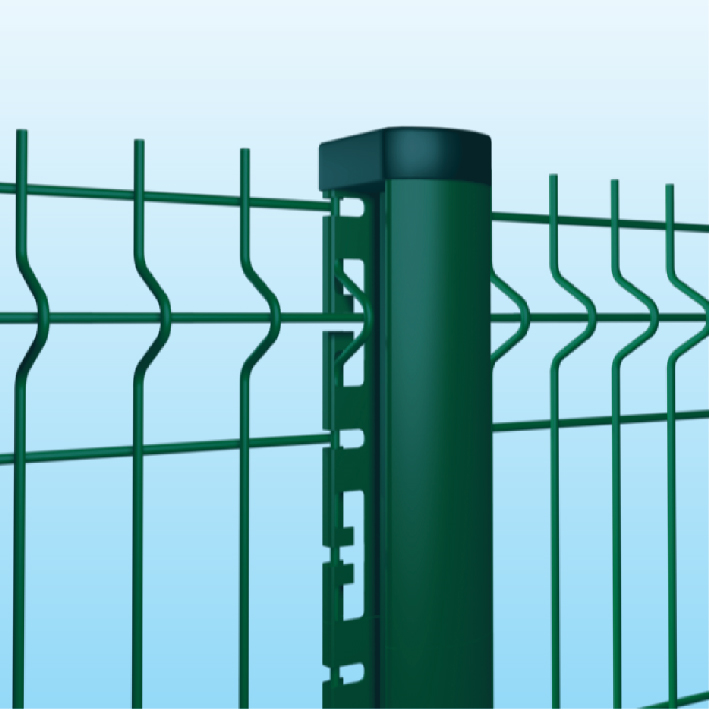

Caesar post

H mm	Panel H mm installed with socket	Panel H mm installed in concrete
1100	1020	620 - 820
1300	1220	1020
1500	1420	1220
1800	1720	1420
2000	1920	1720
2300	-	1720
2500	-	1920
