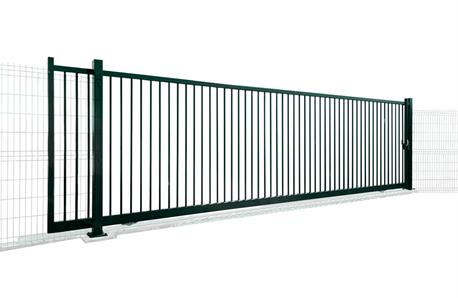

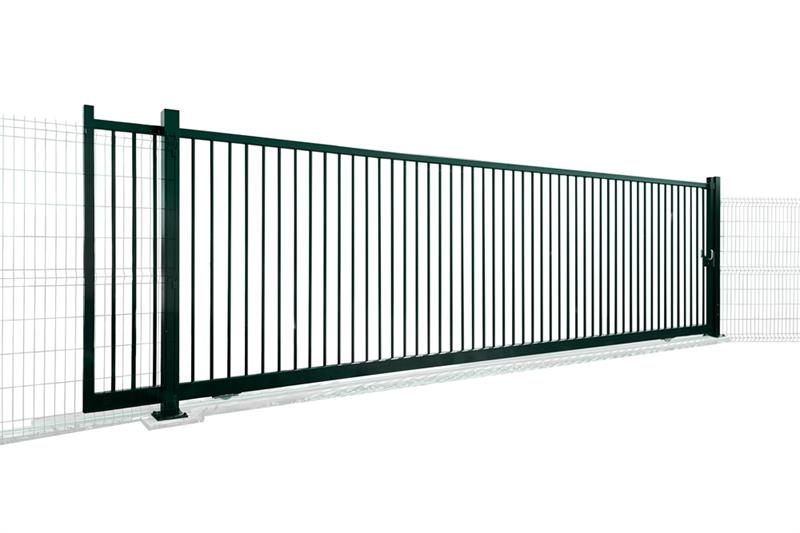

The FBCR120 sliding gate is the ideal solution for residential, commercial and industrial projects that require efficiency, security and a strong focus on durability. It is a sliding system on a dowel track, designed to be installed on a concrete spar and also prepared for intensive use.
The structure uses Sendzimir Z275 steels compliant with the EN 10305 standard, with 120×60 mm beams (variable thicknesses depending on the size) and a ⧄ 60×60 mm tubular frame, completed by 25×25 mm internal bars, to ensure rigidity and resistance even on large spans.
The finish includes high-resistance plasticization using polyester powders, ensuring constant performance over time even in exposed contexts.
The gate is available in manual or motorized version, prepared for CAME or FAAC automations, so as to adapt to access management needs in areas of varying complexity. The standard RAL colours (6005, 7016, 9005, 9010, 5003, 3004) allow perfect integration with the style of the fence and the building. The range covers sizes from 3 to 8 meters, with thickness variants and column configurations depending on height (up to 2500 mm).
The CE marking according to EN13241-1 certifies its compliance with safety requirements. Designed to ensure smoothness, reliability and long useful life, FBCR120 is the reference solution for those looking for a sturdy, elegant sliding gate equipped with a professional technical system.
RAL Standard: 5003 6005 3004 9010 7016 9005
Other RAL on demand.
