Ultimate fencing solution

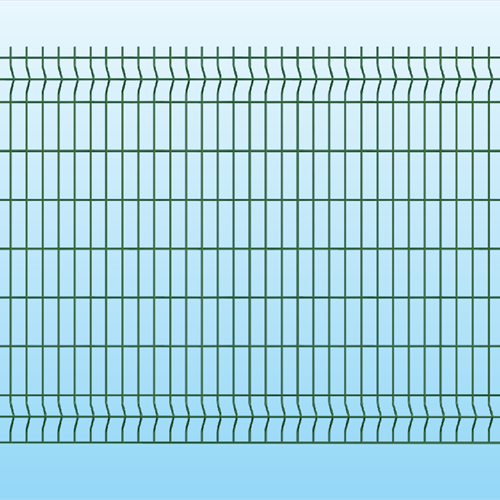

Classic Green is fence in electro welded panels made of dip galvanized + green PVC coated wire.

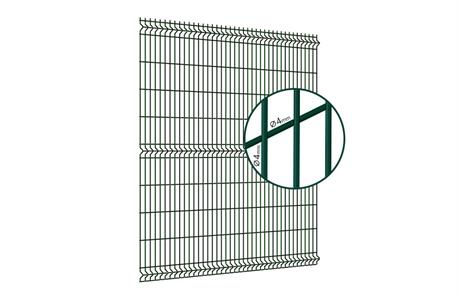

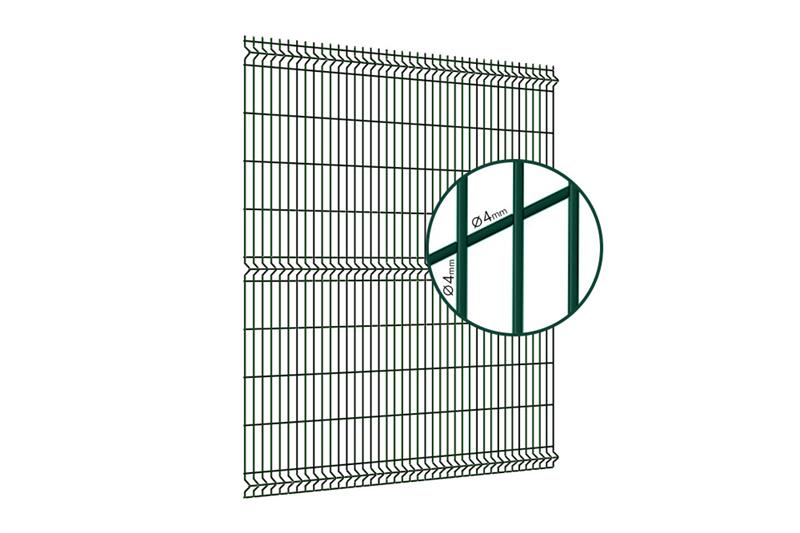

Wire external diameter Ø 4.00 mm, mesh 55x200 H mm (interaxis) and horizontal reinforcing ribs.

Aviable in width 2 mètres, height up to 1,92 mètres, packaging in pallets of 50 pieces.

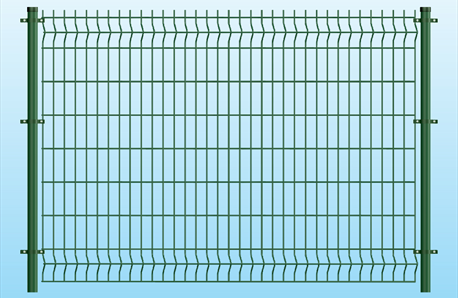

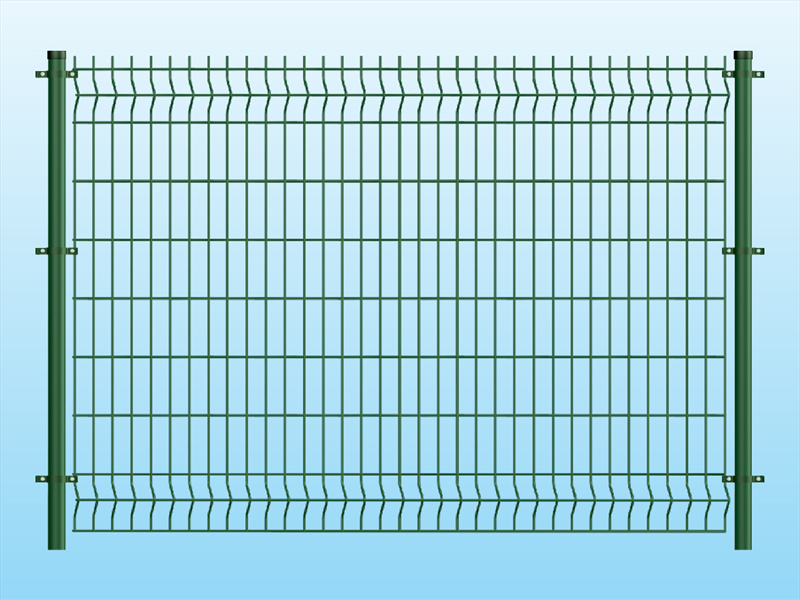

Classic Green is sold with Tubolario Posts Ø 48 mm (with polypropylene clip or steel collar) and Square Posts 50x50 mm (with polypropylene clip or steel collar).

FINISHING AND COLORS AVAILABLE:

  • PFZ: hot dip galvanized + zinc phosphate + polyester plastic coated (Color Green)
Classic Green
H mmØ Wire mm (external)Mesh mmRibs
10204,055x2002
12204,055x2002
14204,055x2002
17204,055x2003
19204,055x2003
Tubolario post Ø 48 mm
H mmPanel H mm installed with socketPanel H mm installed in concretePallet ofAccessories needeed
11001020-1203
1300122010201203
1500142012201203
1750172014201203
2000192017201204
2300-19201204
2600-19201204
Square post 50x50 mm
H mmPanel H mm installed with socketPanel H mm installed in concretePallet ofAccessories needeed
11001020-1203
1300122010201203
1500142012201203
1800172014201203
2000192017201204
2300-19201204
