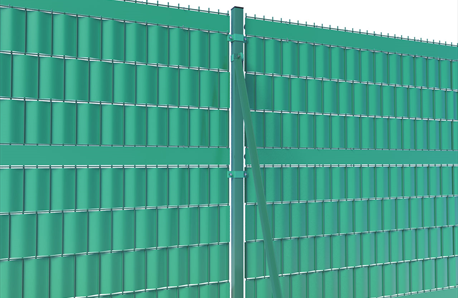

Horizontal Occultation System

Our privacy screening kit in polypropylene for panel fencing is the ideal solution for privacy in residential areas. It offers a perfect screening system for any environment, thanks to the horizontal slats that slide easily into the panels of our fencing systems.
Each package includes narrow strips for the folds of the panels and wide strips for the larger mesh openings; the narrow strips can be fixed to the folds using two fast and effective fastening systems: plastic clips or cable ties (included in the box), while the wide strips slide easily through the mesh openings and are then secured at the ends with clips or cable ties.

The addition of the privacy screening system significantly increases the structural stress on the fences, for which they were not originally designed. This represents a substantial change in the intended use of these products, for which we cannot be held responsible.
However, to meet your expectations, you may proceed as follows:

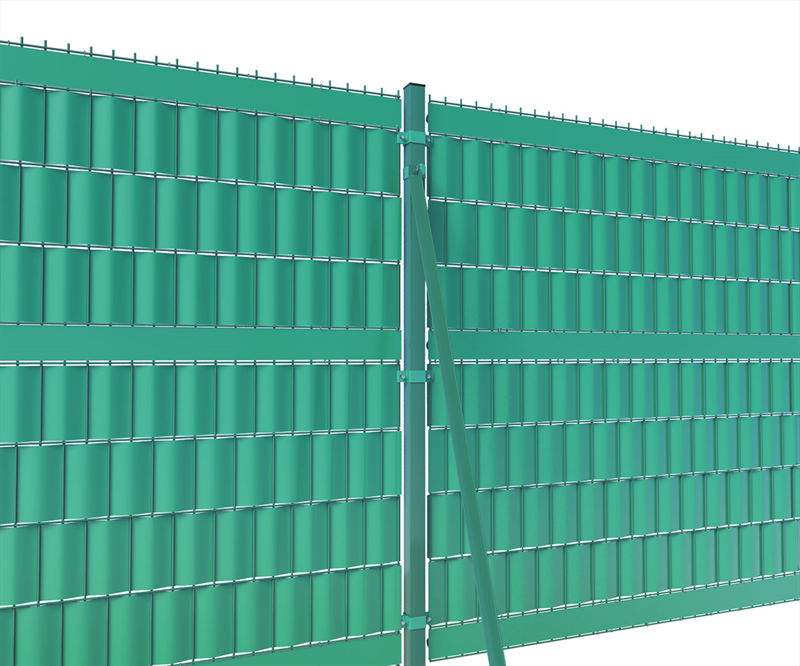

for reinforcement when installing the privacy screening system on welded mesh panels, we recommend the use of 50 mm square posts and 30 mm L-shaped braces on each post.
If the posts have already been installed, they must all be reinforced with suitable braces.

Standard Colors: Green Grey

Horizontal Occultation System
Panel height mm Panel width mm Slats 190x2010 mm Slats 95x2000 mm Boxes per pallet Green Ref.
Grey Ref.
1020-1220 2000 No. 5 No. 2 No. 48 OHV01 OHG01
1420 2000 No. 6 No. 2 No. 48 OHV02 OHG02
1720-1920 2000 No. 8 No. 3 No. 48 OHV03 OHG03
1020-1220 2500 No. 5 No. 2 No. 48 OHV04 OHG04
1420 2500 No. 6 No. 2 No. 48 OHV05 OHG05
1720-1920 2500 No. 8 No. 3 No. 48 OHV06 OHV06
