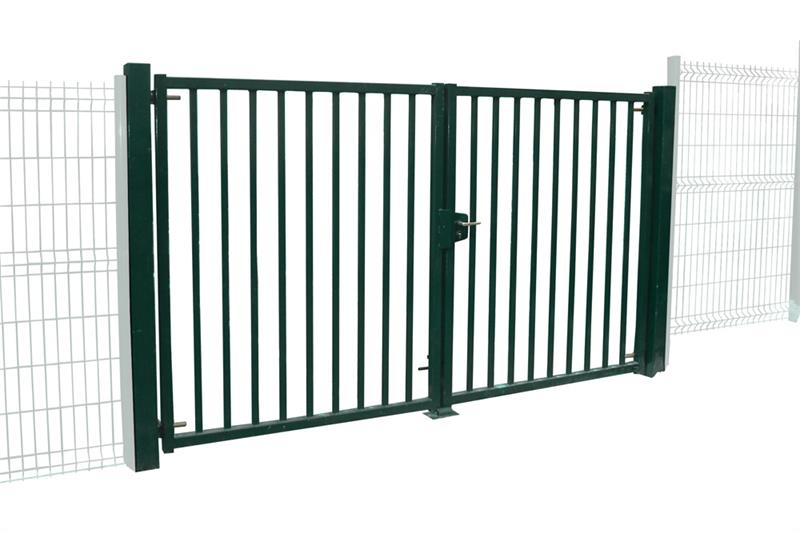

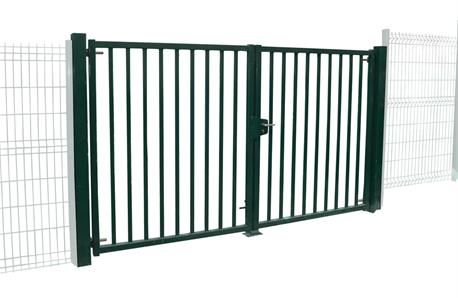

Double-leaf Driveway Gates FB525

FB525 swing driveway gates represent a robust and versatile solution for vehicle access in residential, artisanal and industrial contexts. Their structure uses galvanized tubulars with an increasing section depending on the size (50×50×1.5 mm; 50×50×2 mm; up to 100×100×3 mm in the largest sizes), ensuring rigidity and stability even with large doors.

The 25×25×1 mm tubular inner bars contribute to the overall strength, while the three-dimensional M16 hinges allow for a smooth opening of up to 180°. The system is equipped with poles to be cemented, LOCINOX lock, reversible direction and the possibility of integration with CAME/FAAC automations on request. Available heights are up to 2.00 m, while widths cover configurations from 3 m to 6 m depending on the intended model.

The finish includes Sendzimir Z275 galvanizing and polymerized powder plasticization, offering effective protection against corrosion and weathering. The standard RAL colours ensure continuity with the surrounding fence. The CE EN13241-1 marking certifies its conformity.

Designed to last, FB525 gates combine professional functionality with essential aesthetics, adapting perfectly to a wide range of applications.

Standard RAL: 6005 7016

Non-standard RAL on demand:

5003 3004 9005 9010

Request information

Product details

Tipology:	Swing gate	Model:	FB525
Structure:	Galvanized tubular steel 25x25 mm	Material:	Sendzimir steel Z275.
Finish:	Galvanized and plastic-coated	Color:	Green, grey 7016
Posts:	50x50 mm	Crossbars:	40x40 mm
Product use:	Closure for pedestrian and vehicular access	Application areas:	Urban and extra-urban areas
Advantages:	• The gate is a professional product designed to adapt to any type of terrain. • A simple and easy-to-install range that meets the closure needs of any location. • High-resistance plastic coating, against weather conditions and UV rays. • Wide variety of colors and customization options. • Compliant with European standard EN13241-1.

Driveway Gates FB525

Ref. Green	Ref. Grey	Section post mm	Thicknesspost mm	Dimension cm
525V31	525G31	80	2	300x120 H
525V32	525G32	80	2	300x150 H
525V33	525G33	80	2	300x170 H
525V34	525G34	80	2	300x200 H
525V41	525G41	100	2	400x120 H
525V42	525G42	100	2	400x150 H
525V43	525G43	100	2	400x170 H
525V44	525G44	100	2	400x200 H
525V51	525G51	100	3	500x120 H
525V52	525G52	100	3	500x150 H
525V53	525G53	100	3	500x170 H
525V54	525G54	100	3	500x200 H
525V61	525G61	100	3	600x120 H
525V62	525G62	100	3	600x150 H
525V63	525G63	100	3	600x170 H
525V64	525G64	100	3	600x200 H
