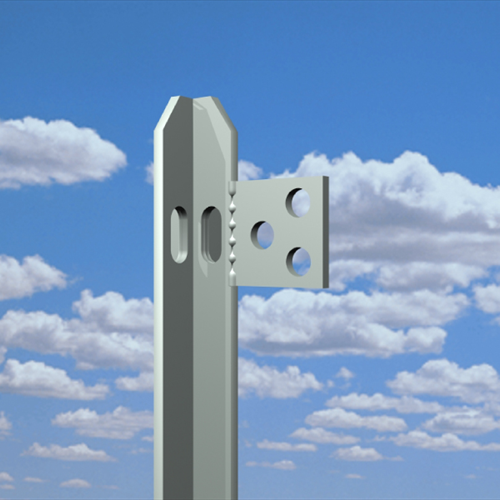

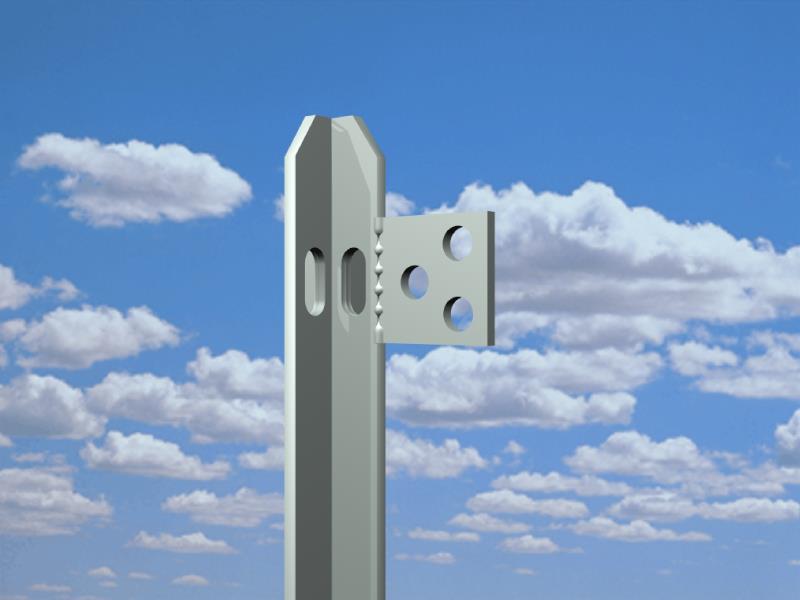

"Cross" profile disperser with plate

"Cross" profile disperser with plate for grounding electrical installations available in height 100 – 150 – 200 cm.

Section 50x50x5 mm, packaging 20 pieces pack.

On our profile disperser are always present two holes on the coast of the section so as to make the disperser also usable in the case in which the plate coming off during transportation or laying.

The height of the disperser is in relation to the distance between one and the other. The distance between them is from 2 to 5 times the height of the dispersers itself.

FINISHING AND COLORS AVAILABLE:

  • HOT DIP GALVANIZED
"Cross" profile disperser with plate
Section mmHeight cmWeight KgPackaging
+ 50x50x51003,5020
+ 50x50x51505,2520
+ 50x50x52007,0020
