"Modulo" fencing system

The "Modulo" fence is a panel system designed to combine clean design, rapid installation and reliability; perfect for fencing residential areas, schools and public complexes.

The panel, 2440 mm wide, features 50×30×2 mm tube crossbars with 110 mm spacing, a configuration that ensures rigidity and a tidy aesthetic.

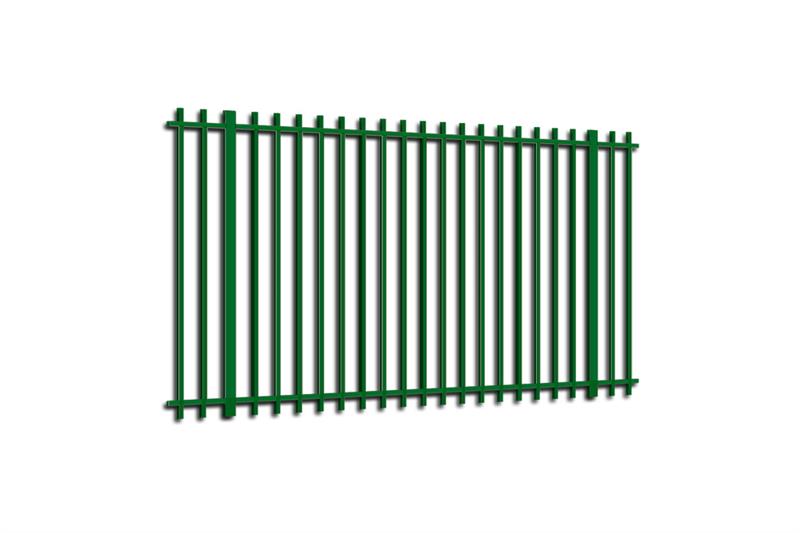

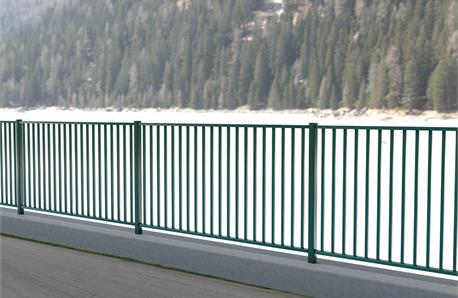

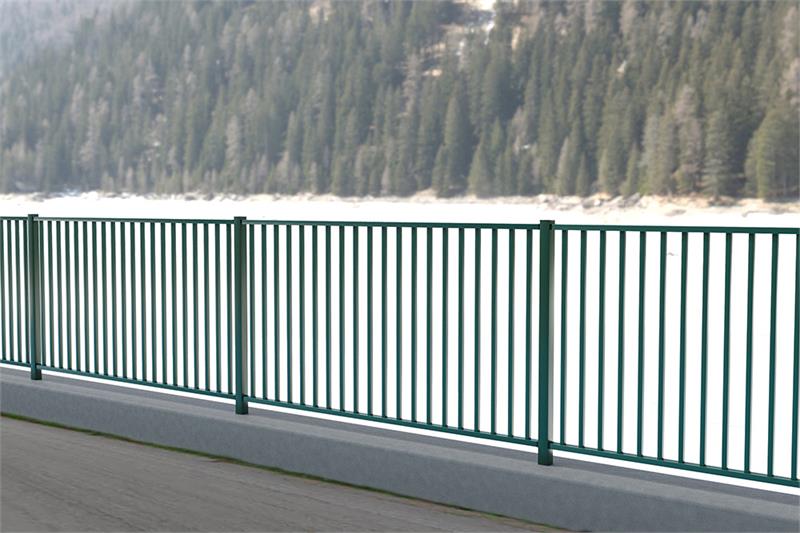

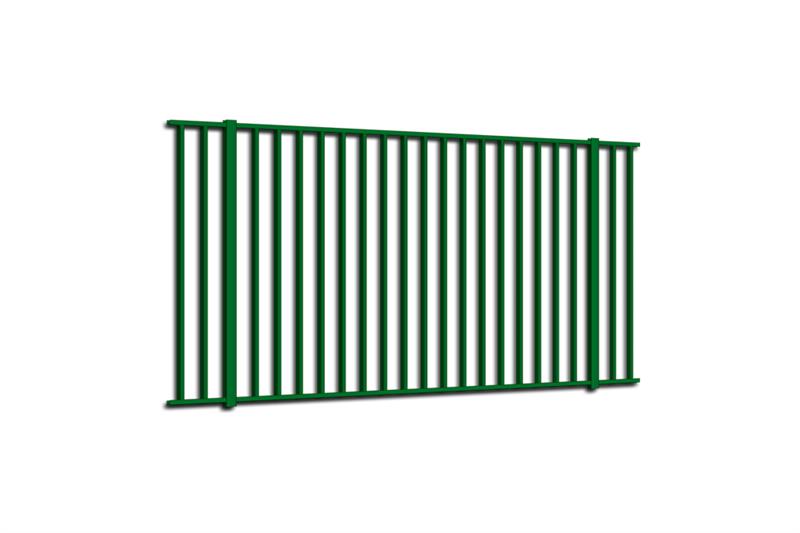

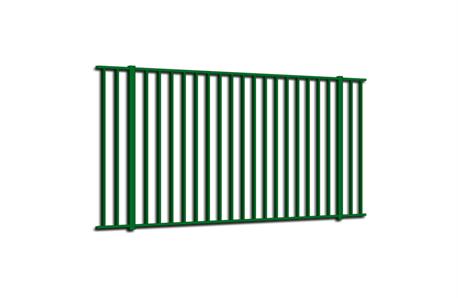

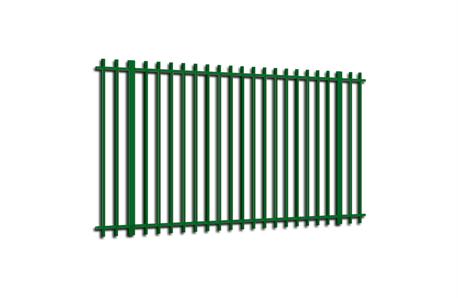

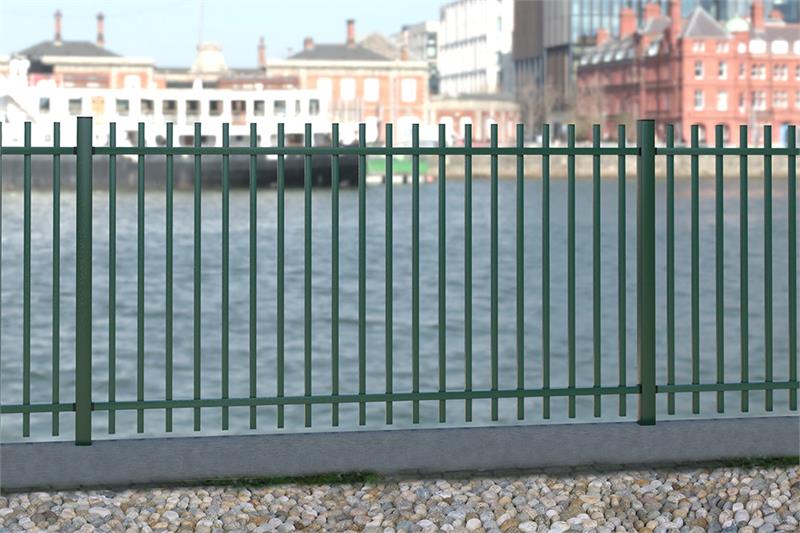

The Sendzimir+polyester finish guarantees protection from atmospheric agents to the structure. "Modulo" offers panels with non-crossing or crossing vertical crossbars (with dedicated cap kit), with 60×60 mm poles and connection plates to be screwed on site, for fast and precise assembly.

The result is a modular system that simplifies fence design, promoting consistent management of aesthetics, safety and budget. The "Modulo" fence is a ready-to-use solution, complete with homogeneous and easily maintainable components.

RAL Standard available: 5003 6005 3004 9010 7016 9005

Other RAL on request.

Product details
Typology: Cancellata in pannelli Model: Modulo
Finishing: Sendzimir + polyester Material: Steel
Product use: To protect Application areas: Urban and extra-urban
Distance between poles:: 2,5 mt Panel width: 2440 mm
Tube crosspieces: 50x30x2 mm Vertical bars: 25x25x1,5 mm distance 110 mm
Tubular poles: 60x60 mm
Advantages:
  • • Ideal for fencing residential, urban, and industrial areas.
  • • Versatile fencing product with an excellent quality/price ratio.
  • • It guarantees a high degree of security.
  • • Adaptability to different environments thanks to the configuration of through and non-through vertical bars.
  • Large variety of standard color choices.

Connection plates to be screwed on site..
On request:
infill with Ø 25 mm round bars.
Accessories: (for crosspieces) bag of 18 unassembled caps.
