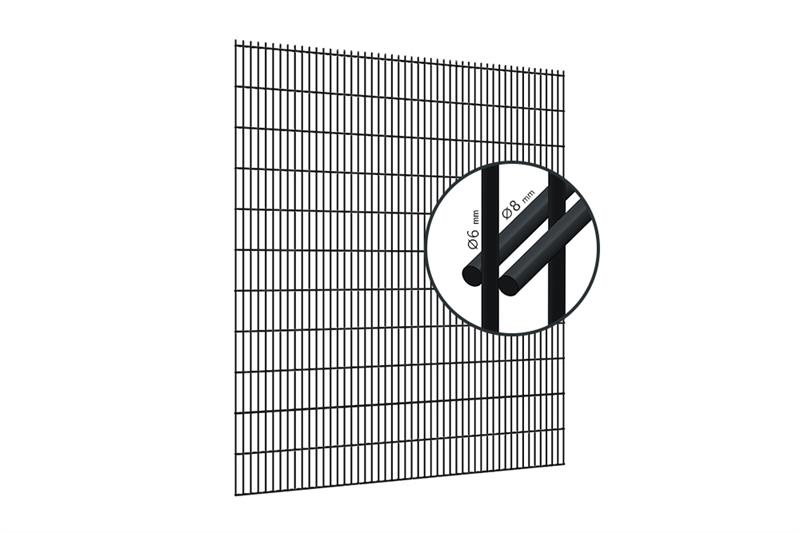

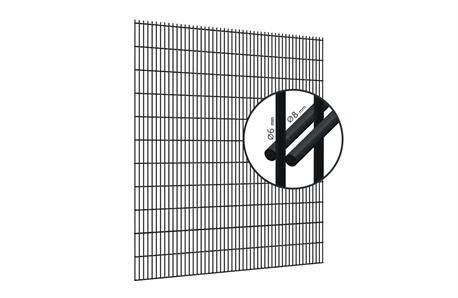

The 868 fence is the high-strength proposal for fences exposed to more intense stresses or at greater risk of impact. The electro-welded panel uses double horizontal wire Ø 8.0 mm and vertical wire Ø 6.0 mm with a mesh of 50×200 mm; The 2500 mm width and a scaling of heights from 630 to 2230 mm allow you to design robust and homogeneous perimeters.

As with 656 fence, the 60×60 mm posts allow installation on a wall or cementing, while the galvanized wire + polyester finish protects against oxidation and bad weather over time. The larger section of the wires increases the rigidity and stability of the panel, making 868 fence ideal for industrial areas, warehouses, sports facilities with crowding, security perimeters and all situations where high-strength fences are needed.

The wide compatibility with accessories and openings facilitates the aesthetic uniformity of the complex: clean lines, quick installation and low maintenance complete a reliable technical system, designed for superior mechanical performance without sacrificing the visual order of the front.

Product details
Type: Panel fencing Model: 8-6-8 PFZ
Panel type: Electrowelded Material: Steel wire
Finish: Galvanized and PVC coated Color: Green RAL 6005
Grey RAL 7016
Mesh: 50x200H mm Wire Ø mm (horizontal) 8.0 mm (double)
Wire Ø mm (vertical): 6.0 mm Width: 2500 mm
Product use: For delimiting and protection Application areas: Urban and extra-urban
Advantages:
  • • Extremely robust product.
  • • Long-lasting durability and high resistance to weather conditions.
  • • Quick and easy installation.
  • • Suitable for uneven terrain.
  • • Ideal for fencing residential and industrial areas, aviation zones, sports fields, and more.
868 fences
Height mm Weight Kg*Width mm Vertical wires Horizontal wires Reference
830 18,8 2500 51 12 CLDG02
1230 27,1 2500 51 16 CLDG04
1430 31,2 2500 51 18 CLDG05
1630 35,3 2500 51 20 CLDG06
1830 39,5 2500 51 22 CLDG07
2030 43,6 2500 51 24 CLDG08
Packaging: pallets of 25 pieces

*Approximate weight.
